MATSUSAKA – “PK” series are specially designed to enhance flexibility, oil & heat resistance properties thereby increasing belt life. This belt is made from non-stretch extra strength tensile cords built into a special fibre reinforced synthetic rubber body. The ribs are specially grind on diamond bits to achieve longitudinal stability in trans- mission power.
Recommended Applications :
Available Types : 3PK, 4PK, 5PK, 6PK, 7PK, 8PK, 9PK, 10PK & 12PK
| Type | Pitch width (mm) | Height (mm) |
|---|---|---|
| PK | 3.56 | 6 |
MATSUSAKA timing belts are designed to resist oil and heat under normal driving circumstances.
These belts have been precision moulded with fabric protection on specially compounded synthetic rubber reinforced with S/Z twist glass fibre tensile cords within special rubber backing.
Recommended Applications :
Japanese, Korean, European & American car models
Selected Japanese & some European car models
Selected Japanese & Korean car models
Japanese, Korean, European & American car models
Japanese, Korean, European & American car models
Selected Japanese & Korean car models
Selected Japanese & Korean car models
Japanese, Korean & European car models
Available Types : REL– AX only

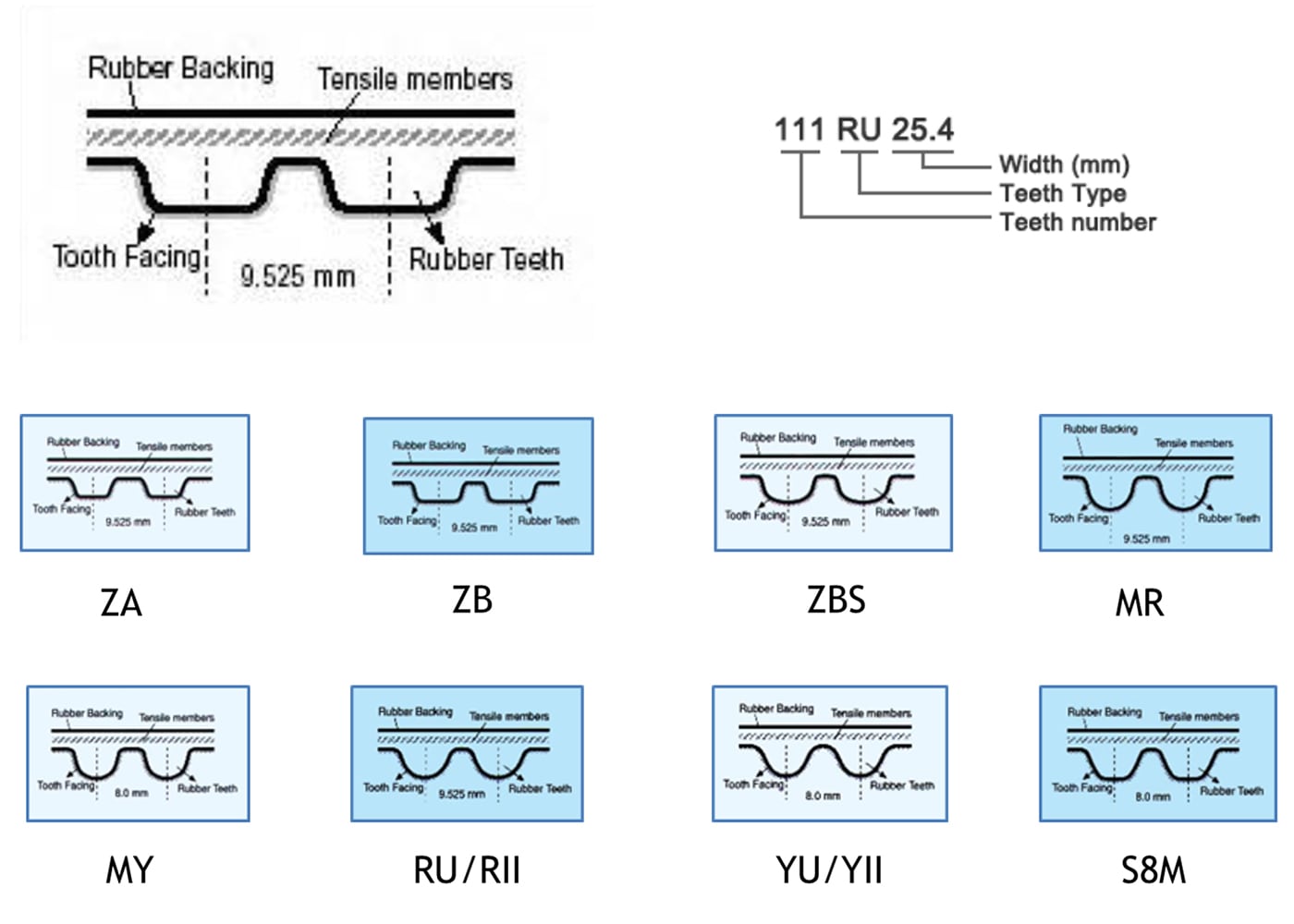

| Type | Pitch (mm) | Teeth Height (mm) | Thickness (mm) | Range | Recommended Application |
|---|---|---|---|---|---|
| ZA | 9.525 | 1.91 | 4.1 | 54-148 teeth | Japanese, Korean, European & American car models |
| ZB | 9.525 | 2.3 | 4.5 | 55-163 teeth | Selected Japanese & some European car models |
| ZBS | 9.525 | 2.8 | 5.1 | 55-163 teeth | Selected Japanese & Korean car models |
| RU | 9.525 | 3.44 | 5.7 | 59-196 teeth | Japanese, Korean, European & American car models |
| MR | 9.525 | 3.54 | 5.69 | 70-177 teeth | Japanese, Korean, European & American car models |
| YU | 8 | 3 | 5.2 | 65-281 teeth | Selected Japanese & Korean car models |
| MY | 8 | 3.06 | 5.2 | 99-211 teeth | Selected Japanese & Korean car models |
| S8M | 8 | 3.05 | 5.3 | 65-253 teeth | Japanese, Korean & European car models |
MATSUSAKA REL-AX belts are specially designed to resist oil and heat in an extremely demanding driving environment.
This belt is made of durable fibre reinforced rubber with specially treated extra strength synthetic tensile cords and laminated fabric.
Recommended Applications :
Available Types : REL– AX only
| Type | Top width (mm) | Thickness (mm) | Angle |
|---|---|---|---|
| REL-AX | 13 | 8 | 40 |
